0.5mm -1.2mm High speed Fine wire drawing machine for cable , wire
drawing machine
energy saving, low noise, simple structure, the main electrical
components imported, high-speed, high efficiency.
Electrical:
① The basic function in wire drawing machine is complete; Single
machine is punctual, leftist writers point move, single point,
leftist writers (right) running, stop; Tuning roller tension
adjustment, mould box and roll cooling water regulation.
② the work station complete: total rev, stop, stop, acceleration,
deceleration,
fault indicator, the meter reset
③ Touch screen to finish: mold fitting
(wire), speed setting, the length of the set (fixed-
length automatic parking), jump die set, inching
speed setting, fault, according to the actual running speed
display, lighting switch

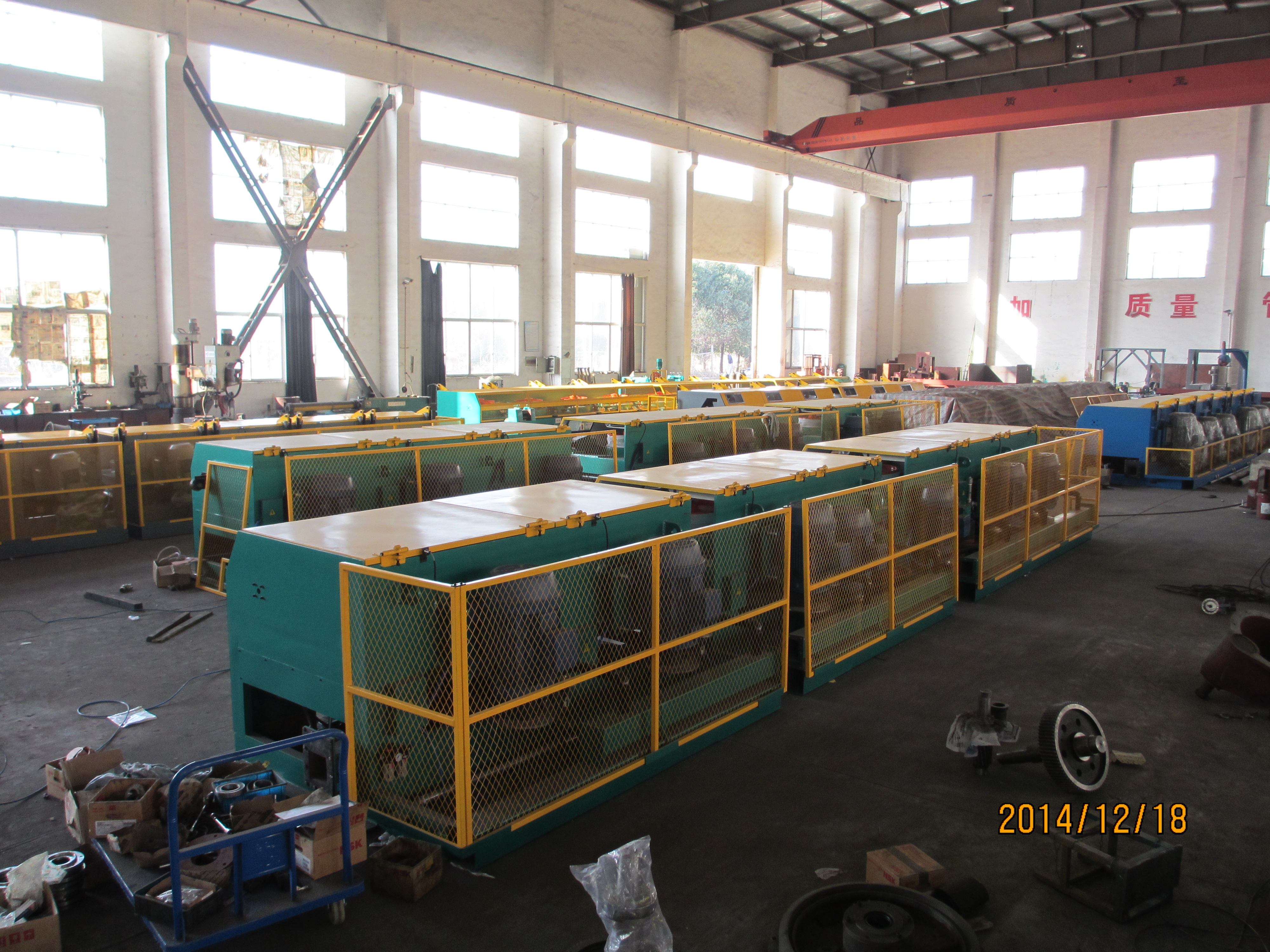

High speed Fine wire drawing machine
1 LZ6/560 Straight line wire drawing machine
2 800mmI-spool wire take-up machine
3 Man-machine interface control touch screen
4 Whole set electrical control cabinet
Main technical parameter and points:
(1) Inlet strength: ≦1300 MPa
(2) Max inlet dia: Ф6.5mm
(3) Min wire outlet dia: Ф2.5mm
(4) Max compression rate:97%
(5) Max drawing speed:10m/s Normal drawing speed:9m/s
(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa
(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa
(8) Motor:①Main motor:30KW*9 AC motor
② Wire take-up machine:22KW AC motor
(9) Drawing drum, Drum diameter Ф600mm,material:ZG45 steel,spray
tungsten carbide hard alloy powder on the working surface,
thickness 1mm,height:60mm , Drum as a direct contact with the steel
wire core components, its manufacturing technology also be
especially fastidious. My company reel overall beautiful
sex and rigidity is higher; After tempering treatment after rough
machining, in order
to improve the overall and mechanical properties of the drum; Drum
face by
surfacing welding wear-resisting carbide processing, and then after
grinding machinegrinding refined but become, within the drum
surface processing has spiral u-shapeslot. Its cooling principle is
through the drum and the relative rotary motion of the water jacket
cooling water jacket of the lateral oblique rib to squeeze into the
top, the inside of the drum helical will finish heat exchange
cooling water down the u-
shaped groove to make it fast, within the drum surface processing
with the
application of the spiral u-shaped slot technology, not only make
the squeezing
effect of cooling water, and increased the reel internal heat
exchange area, practiceproves that the application of this
structure, drum heat exchange efficiency more than 30%, thus
greatly improve the drum water cooling effect; Another drum wall
caneffectively prevent the scale deposit on the inner wall of the
drum, further to ensure the water cooling effect, and improve the service life of
the drum.to ensure the quality of steel wire drawing. Drum surface
finish Ra0.4 or higher, the surface hardness of about HRC60°, drum
set satisfies the requirement of high-speed drawing wire line height. Wear and tear up the slot free
replacement within 5000h
