Industrial Abrasive Belt Surface Grinder Machine , Universal Wire Grinding Machine

Ask Lasest Price
Brand Name :	Belt grinding machine
Certification :	ISO9001
Price :	Negotiated
Payment Terms :	T/T 30% deposit，70% rest payment before shipment
Supply Ability :	20sets/month
Delivery Time :	45 days after receiving order and deposit

Add to Cart

Product Details
Company Profile

Industrial Abrasive Belt Surface Grinder Machine , Universal Wire Grinding Machine

Calcium Silicate Board Abrasive Belt Grinding Machine , Composite Material Grinding Machine

How to use
A. Place the pipe grinding machine horizontally on a hard flat surface.
B. Install and remove the belt: The belt is controlled by an elastic spring. And move from top to bottom.
Use the round tube ( send with the grinding machine) to harness the spring control device, press down, then the abrasive belt will release;
Adjust the abrasive belt location, release the spring controller naturally, and locked with a screw handle, so install and fixed the sand belt

C. Turn the screw handle which on the rubber wheel housing, to adjust the feeding rubber wheel in and out position.
Until the tube rotating freely, that the feeding rubber wheel, round tube and abrasive belt can reach a best friction distance.
The feeding rubber wheel rotates counterclockwise (from bottom to top).
D. Adjust the feeding pallet up and down by screw handle, to make the circle pipe, feeding rubber wheel and sanding belt on a best center position.
E. This pipe grinding machine is very easy to control, only two buttons "ON and OFF"

F. During feeding, the sand belt down movement, and feeding rubber wheel up movement.
When the feeding rubber wheel angle move to left, and the angle larger, the feeding speed faster.

Technical Parameters

Voltage	380V, 50Hz
Main motor power	2.2KW
Fans power	0.44KW
Driving wheel speed	1420r/min
Abrasive belt speed	890mm/min
Feeding wheel speed	70r/min
Feeding speed	5-15m/min, can adjusted by feeding angle
Tube diamenter	10-60mm, skilled workers can process 6-60mm
Abrasive belt size	1820120mm (LW)
Machine size	5007001250mm (LWH)
Machine weight	360KG

Main technical data of abrasive belt grinding machine

Fully automatic.

Utilizes the principle of seam welder with round welding wheel.

Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process

Medium frequency inverter power source which is electricity saving.

Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.

Adopt the professional automatic control system from Mitsubishi

Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.

SPGB belt polishing machine is environmentally friendly non-emissions alternative to pickling, wire (raw material) surface oxide layer 100% removal, for and tie wire, galvanized wire, chrome wire, copper wire, alloy wire, stainless steel wire , Screw line, fasteners, welding wire, welding rod, wire rope and so on.

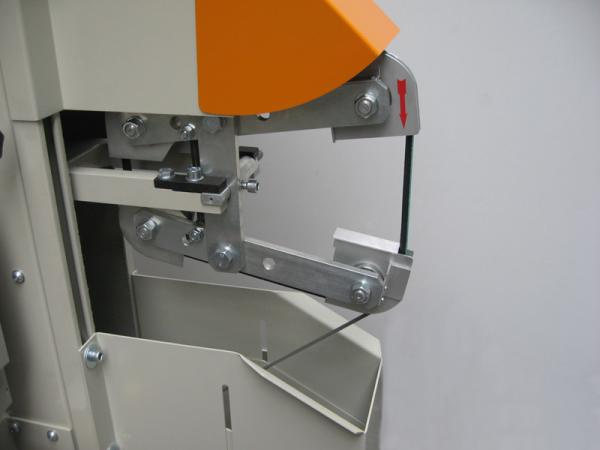

When the machine works, the turntable rotates 360 ° around the steel wire to ensure that there is no contact between the steel wire and the abrasive belt. The belt is driven by two rotating rollers and pressed against the wire surface, so that the wire surface is slightly cut. Evenly removed 0.03mm
