High speed ISO9001 draw metal wire Drawing Machine Parts with Spring wire, wire rope

Wire Drawing Machine Parts Product Description

1.Wire drawing machine parts of Brief introduction

This type is used for drawing copper wire from 2.8-6.5mm to 0.65-4.5mm, which can be annealed before the outlet wire is wound by the single bobbin take up machine or coiler.

2.Wire drawing machine parts of characteristics

1). Annealing part is designed for softening the bigger size with high elongation and flash surface.

2). Ironed cast and Wear-resistant capstan can keep long life

3). Fully immersed lubrication, seperated with gear box

3.Wire drawing machine parts of Technical parameters

Type	560	550	450	350
Material Intensity	δb≥110kg/mm2	120kg/mm2	128kg/mm2	δb≤140kg/mm2
Max. Dia. Of Inlet Wire	6.5mm-4.4mm	6.5mm	4mm	2.6-1.5mm
Min. Dia. Of Outlet Wire	2.6mm-1.8mm	2.2mm	1.6mm	1.2-0.8mm
Block	1	1	1	1
Max. average condensation	0.3	20%	20%	21%
Total Condensation	78-88.5%	78%	77.90%	78%
Max. Speed of Block	245m/min	260m/min	280m/min	200m/min
Total Power	22/30kw	18.5/22kw	11/15kw	5.5/7.5kw

Wire Drawing Machine Parts Specifications

• wire drawing machine parts
• Capstan dia:250~1200mm
• Speed:300-1200m/min
• AC motor, inverter adjust speed

Our Services

As a professional exporter,our target is to serve worldwide clients with high quality products, great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.

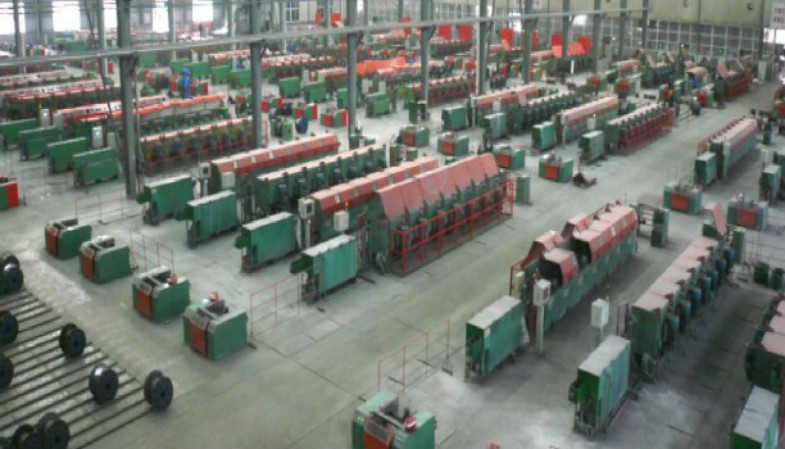

JiangYin YiFa Metal Science & Technology Co., Ltd. is one of the Chinese premier manufacturers of wire drawing machine.We supply advanced wire drawing machine,auxiliary equipment and excellent after-sales service for Chinese and overseas metal products industry. Through 25 years efforts and continuous innovation,

YiFa wire drawing machines,such as straight line wire drawing machine, Bright wire drawing machine ,welding wire machine, inverted vertical wire drawing machine, wire bending machine and other auxiliaries, have the mechanical characteristics structure and electronic control configurations, advanced technical indicators design, stable equipment performance, safe and reliable running and easy operation and maintenance. Machines are widely used with digital control technology and intelligent method, which greatly improves the production efficiency.
