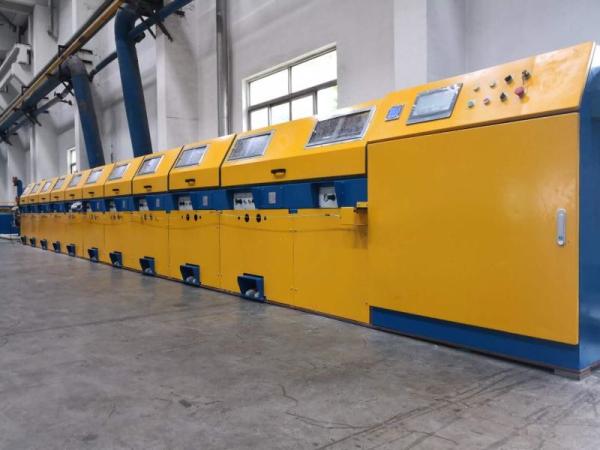

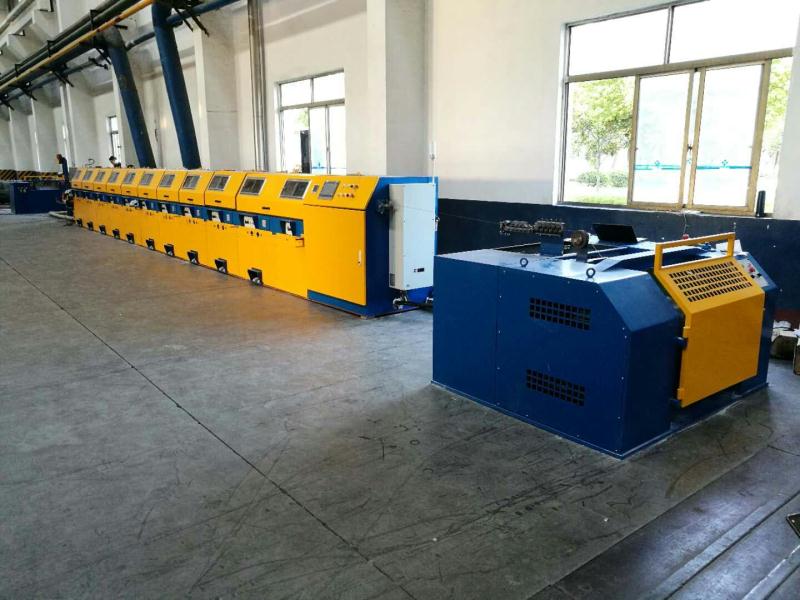

Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel

Jiangyin Yifa Metal Science & Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
    Buy cheap Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel from wholesalers

    Buy cheap Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel from wholesalers
    • Buy cheap Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel from wholesalers

    Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel

    Ask Lasest Price
    Brand Name : Servo direct connection wire drawing machine
    Certification : ISO9001:2000
    Price : Negotiated
    Payment Terms : T/T 30% deposit,70% rest payment before shipment
    Supply Ability : 10sets/month
    Delivery Time : 60 days after receiving order and deposit
    • Product Details
    • Company Profile

    Vertical Type Straight Line Wire Drawing Machine For Low / Medium Carbon Steel


    nverted vertical wire drawing machine/low carbon steel/medium carbon steel wire drawing machine


    Raw Material


    Low carbon wire


    Feature

    1. Complete electrical system, perfect protection system and water seal cooling system

    2. Easy combination, high productivity and convenient operation.


    Our Services

    1. One year since the machine was installed at buyer's factory but within 18 months against B/L date.

    2. 24 hour technical support by e-mail

    3. We offer installation and train the workers for the customers.


    Operating feature:


    15%,≤50db Power saving 15%,no spare parts,keep silence when running with any speed ≤50db

    Transportation and installing:according to the need design triplet joined or four joined or five joined,convenient to transportation,only connect aerial linker,rapid plug then can realize whole line connection of water,electricity,air,only need fix expansion bolt to ground than production,two line machine back to back seamless installing, can finish to installing working during 4 hours

    Transmission and lubrication:wire drawing machine servo motor self lubrication,15 years greasing free

    Die match:Die match arbitrarily,no need adjust electronic control parameter


    Servo direct drive wire drawing machine


    Can be used for high, medium, low carbon and stainless steel coil production, from 2 to 16 passes, drum diameter from 300 mm to 1200 mm (currently mainly 300 mm to 600 mm). Main features:

    1) servo direct drive: lower maintenance cost, lower power consumption, less spare parts and lower noise.

    2) twin structure: more economical and convenient maintenance.

    3) electrical built-in: plug and play, no electricity cabinet, no cable, no construction.

    4) Internet of things Management: product life cycle management, equipment production status management, and production result analysis.


    Application of wire drawing machine:

    used to producehigh carbon steel wire Steel cord,tire bead,spring steel wire,wire rope and so on,stainless steel wire low carbon steel wire(welding wire,gavalnized steel wire,packing wire,nail making wire,copper(alloy) wire,aluminum(alloy) wire

    Production:High carbon steel wire,stainless steel wire,low carbon can produce in same machine


    Cooling: Outer of drum cover (servo motor)water pond,without dust rubbish enter tube

    Adopt open-type narrow slit water cooling,without scale,without blocking,maintenanve-free

    Speed adjustable,stepless speed change,heavy load with low speed,underloading with high speed 0~300HZ frequency operating efficiency 95%


    come from Chinese G-series high-speed group,has more than 10 years servo motor production experience,ensure each motor leave factory before going through national level experiment testing room,with certicate of qualification, and test data,motor adopt water cooling(supplier provide circulation water tank and condensing equipment)
